Actuator for powertrain applications

Scalable motor with two electronic variants

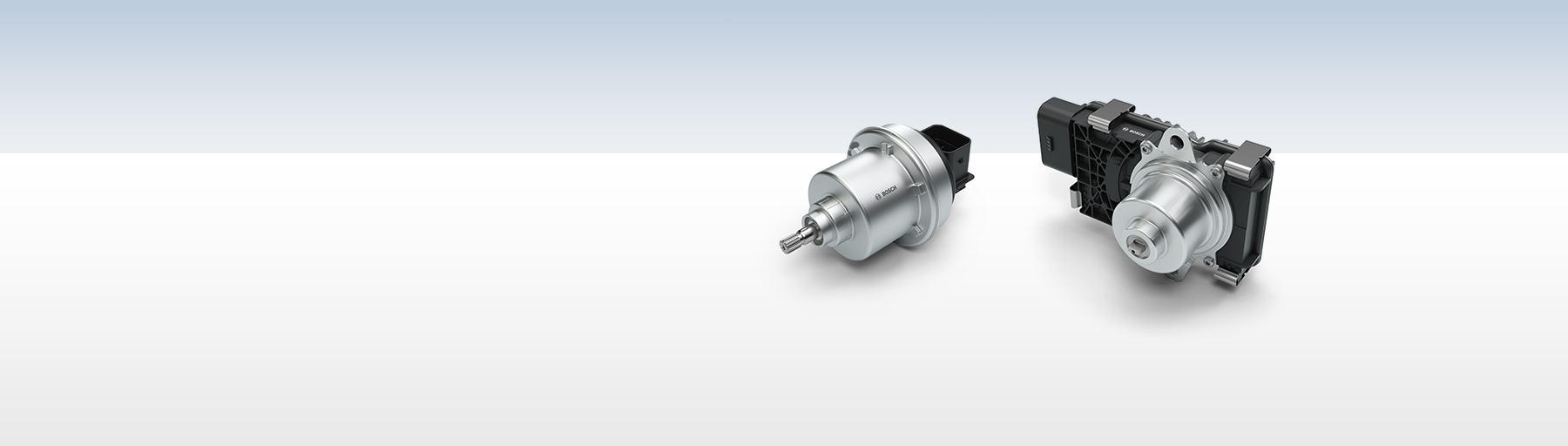

Bosch is driving e-mobility with innovative and economical solutions. Electric powertrain solutions for passenger cars, commercial vehicles, and two-wheelers are becoming increasingly complex. The ability to adapt them easily to different application requirements is therefore more important than ever. The ECA (electronic compact actuator) helps to realize efficient, economical solutions for powertrains with its scalable and modular hardware platform.

Universal

for a broad range of powertrain and chassis applications

Modular

in terms of electronic configuration, scalable in terms of torque and power level

Hybrid passenger cars and light commercial vehicles

Electrified passenger cars and light commercial vehicles

Power actuators for different types of powertrains

The number of electrified passenger cars, light commercial vehicles, and heavy commercial vehicles will rise sharply globally by the end of the decade. In addition to this, the level of automation of transmissions in passenger cars and two-wheelers is increasing continuously.

Hybrid passenger cars and light commercial vehicles HEV (Hybrid Electric Vehicle)

The ECA actuates clutches or gear shift units in conventional and electrified transmissions for different hybrid topologies and voltage levels.

Electrified passenger cars and light commercial vehicles BEV (Battery Electric Vehicle) or FCEV (Fuel Cell Electric Vehicle)

The ECA actuates clutches, gear shift units and parking locks in eAxle transmissions

Electrified commercial vehicles (BEV or FCEV)

The ECA actuates clutches, gear shift units and parking locks in the transmissions of eAxles and electric central drives.

Automatic transmission for two-wheelers

The ECA actuates clutches and gear shift units of motorcycles and light vehicles.

ECA-S

ECA- M

Operations of the actuator

The brushless DC motor (BLDC) offers high dynamics and torque density in minimal space. The platform enables implementation of an intelligent drive strategy, variable torque scaling through adaptation of the active length and several configuration options for the electronics. The powertrain actuator is designed for harsh ambient conditions (depends on load profile/application), e.g. high NVH (noise, vibration, and harshness) and demanding vibration and tightness requirements.

A precise position sensor is integrated in the type S actuator. Control takes place in the higher-level control unit. Applications include the shift/select function in the transmission and electrical clutch actuation.

In addition to position and rotational speed control, the powerful electronics of the type M enables additional control unit functions. These include execution of customer-specific system software, communication with other control units or sensors via the CAN bus or FlexRay, and control of other system components. Applications include controlling torque distribution in transfer cases and differentials and shift actuation in multi-speed eAxles.

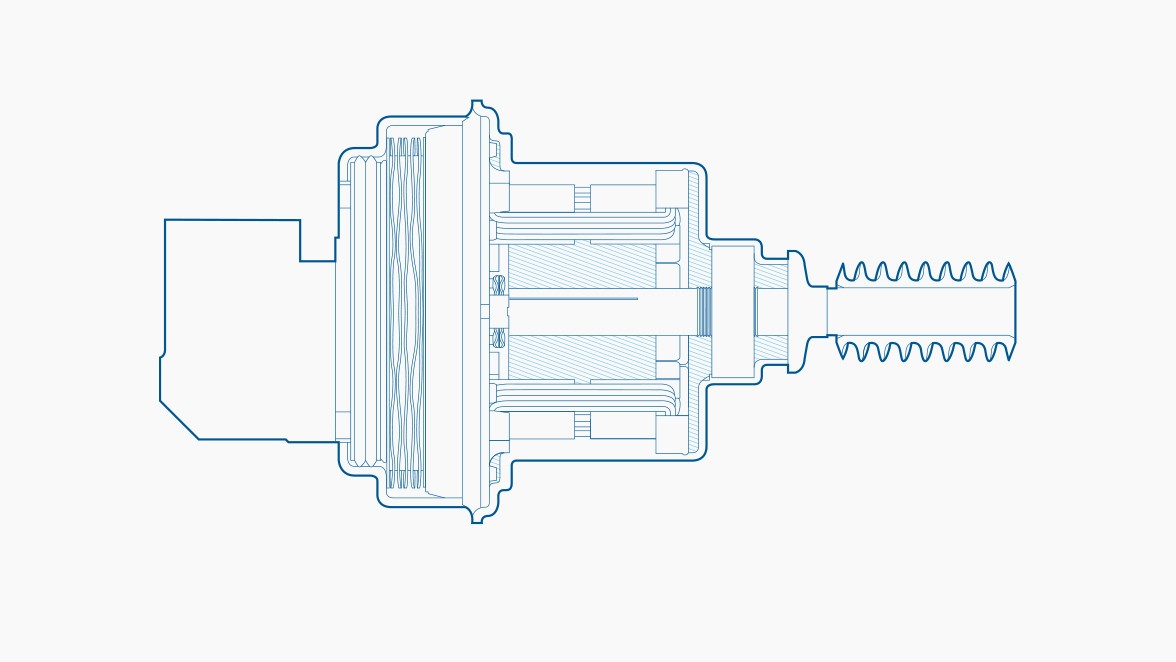

ECA-S: Clutch or shift actuator for harsh ambient conditions

The flexible powertrain actuator for hybrid or eAxle transmission

BLDC motor with high resolution position sensor
Signal options (e.g. ENC, HALL, PWM, SENT)
Diagnostic function
Customer-specific interface options
Seal welded connector housing
Optionally with sealed shaft
Flexible motor shaft (e.g. worm gear)

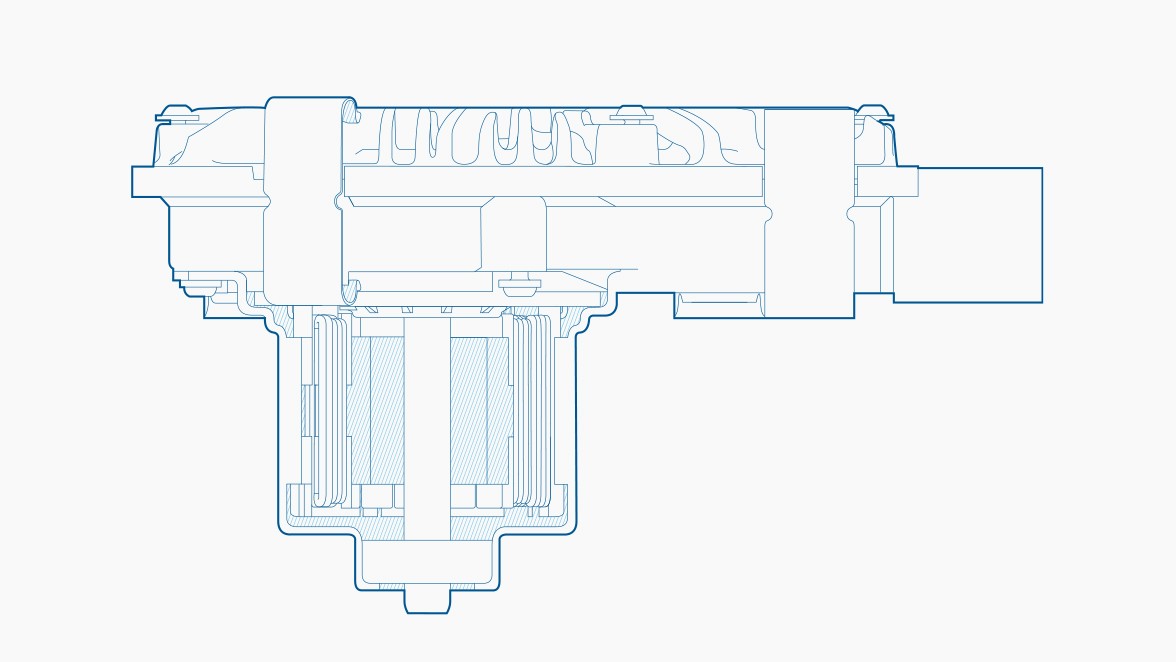

ECA-M: Smart actuator, for multi speed eAxle transmission or transfer case

ECA-M: Smart actuator, e.g. for multi speed eAxle transmission or transfer case

EC motor with integrated ECU for the powertrain

BLDC motor with integrated power electronics
Control unit functionality: Powerful electronics for execution of customer-specific application/system software
Customer-specific interface options
Integrated control unit functionality
CAN, CAN-FD, FlexRay communication
Flexible motor shaft connection (e.g. 2 dihedron)

Technical data

0.5 – 1.2 Nm

Stall torque

+/- 1,5°

Angular acuracy mechanical static

-40 – 125..140 °C

Temperature range (depending on electronic variant)

8,000 h

Life time

PRODUCT BENEFITS

Universal motor for applications in the powertrain and chassis sectors
Small, compact EC motor with high power density
Torque range scalable over the active length
Flexible communication interface (CAN, CAN-FD, FlexRay)

Customer-specific adaptation of the motor characteristics
High service level (release support, application and project management)
Fulfillment of specific requirements thanks to the versatile modular hardware system
AUTOSAR-compliant software platform for application-specific adaptations
