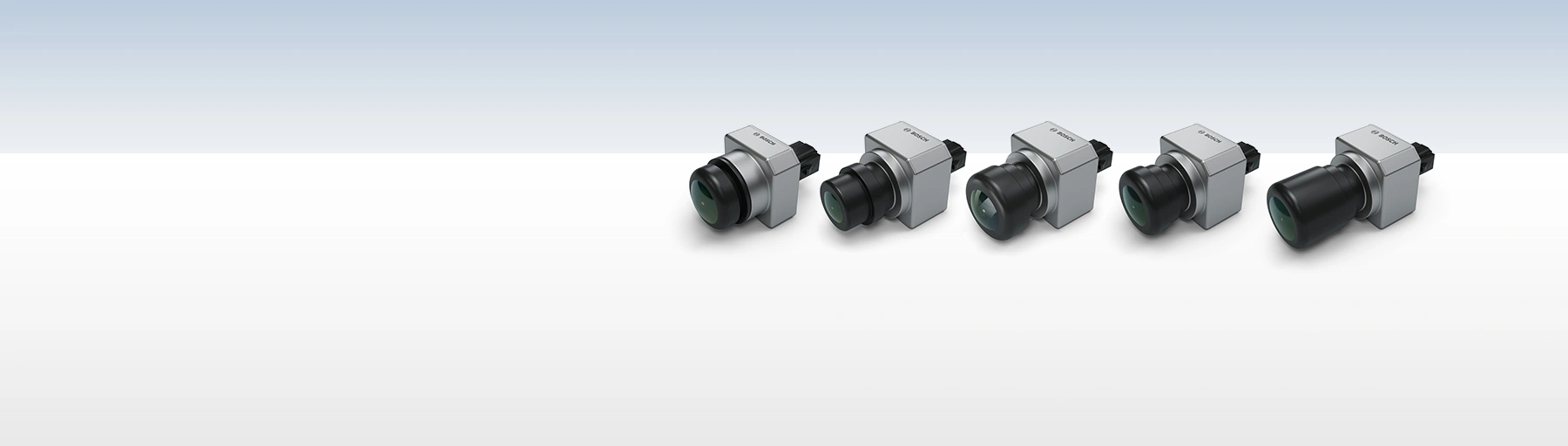

Camera heads

Flexible camera solution for centralized vehicle architectures

The camera heads from Bosch are sensors for the realisation of assisted and automated driving and parking functions. Due to their compact size and modular platform concept, they offer vehicle manufacturers maximum flexibility in the design of environment perception in centralised systems.

safety

cameras are an important part of robust environment perception

flexibility

for customer-specific design adaptations

comfort

camera heads enable driver assistance from level 0-4

openness

supporting several SoCs and third-party software

Operation principle of the camera heads

With the new camera heads Bosch offers a flexible system for the enviroment perception. With a 3-megapixel and an 8-megapixel version and scalable up to 12 megapixels for Level 4 applications, the camera heads are at the cutting edge of image sensor technology.

Camera heads are an integral part of centralized E/E architectures. The computing power is no longer located inside of the camera itself, but is offloaded to a central vehicle computer such as the ADAS integration platform .

Flexible system for environment perception

Camera heads as an integral part of centralized E/E architectures

Overview camera heads

Different camera head variants cover different surrounding areas, providing up to 360 degrees of coverage depending on the SAE level.

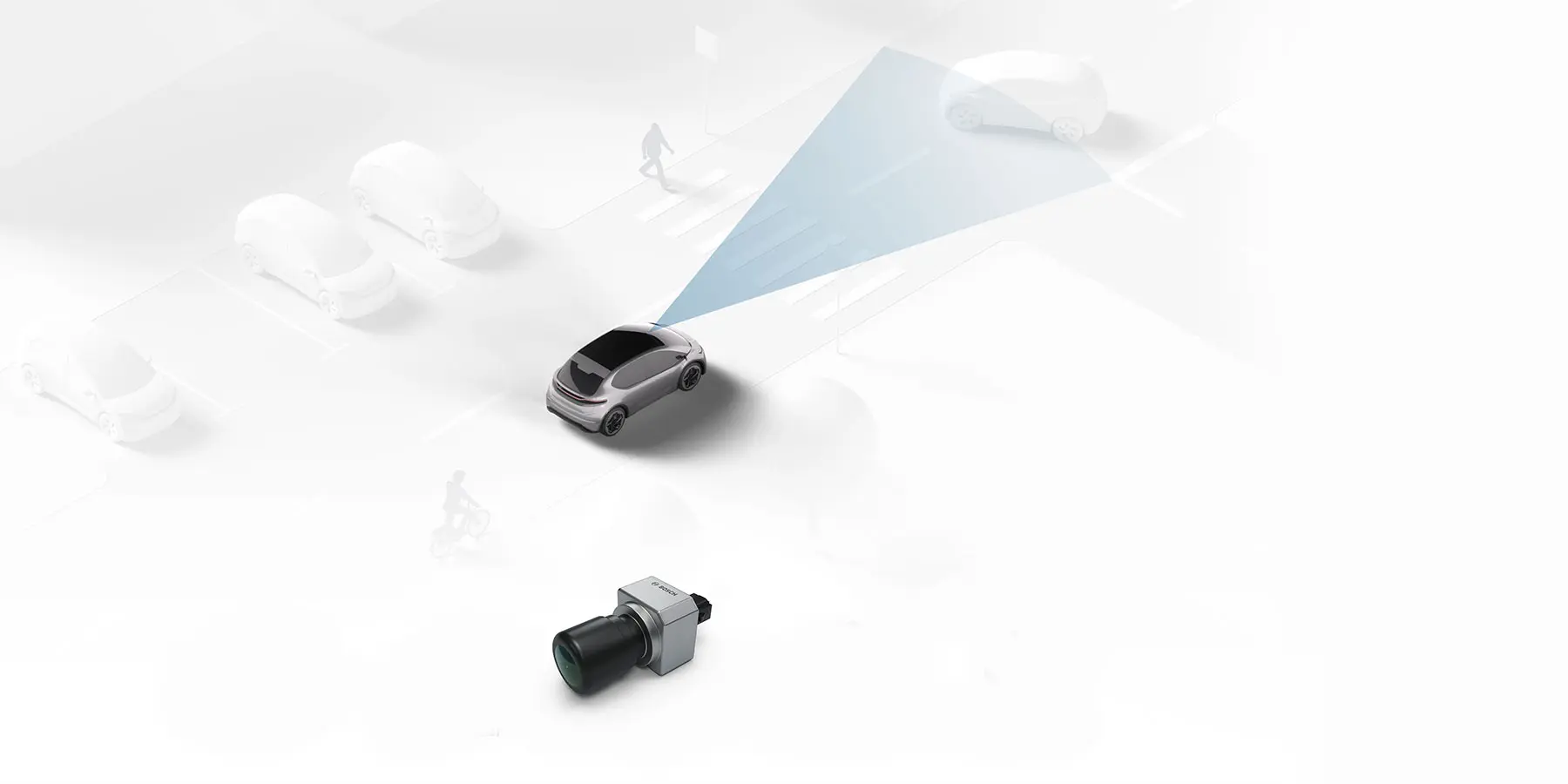

Tele camera

The 8-megapixel front-facing camera has a narrow viewing angle and is designed to detect objects in the further distance.

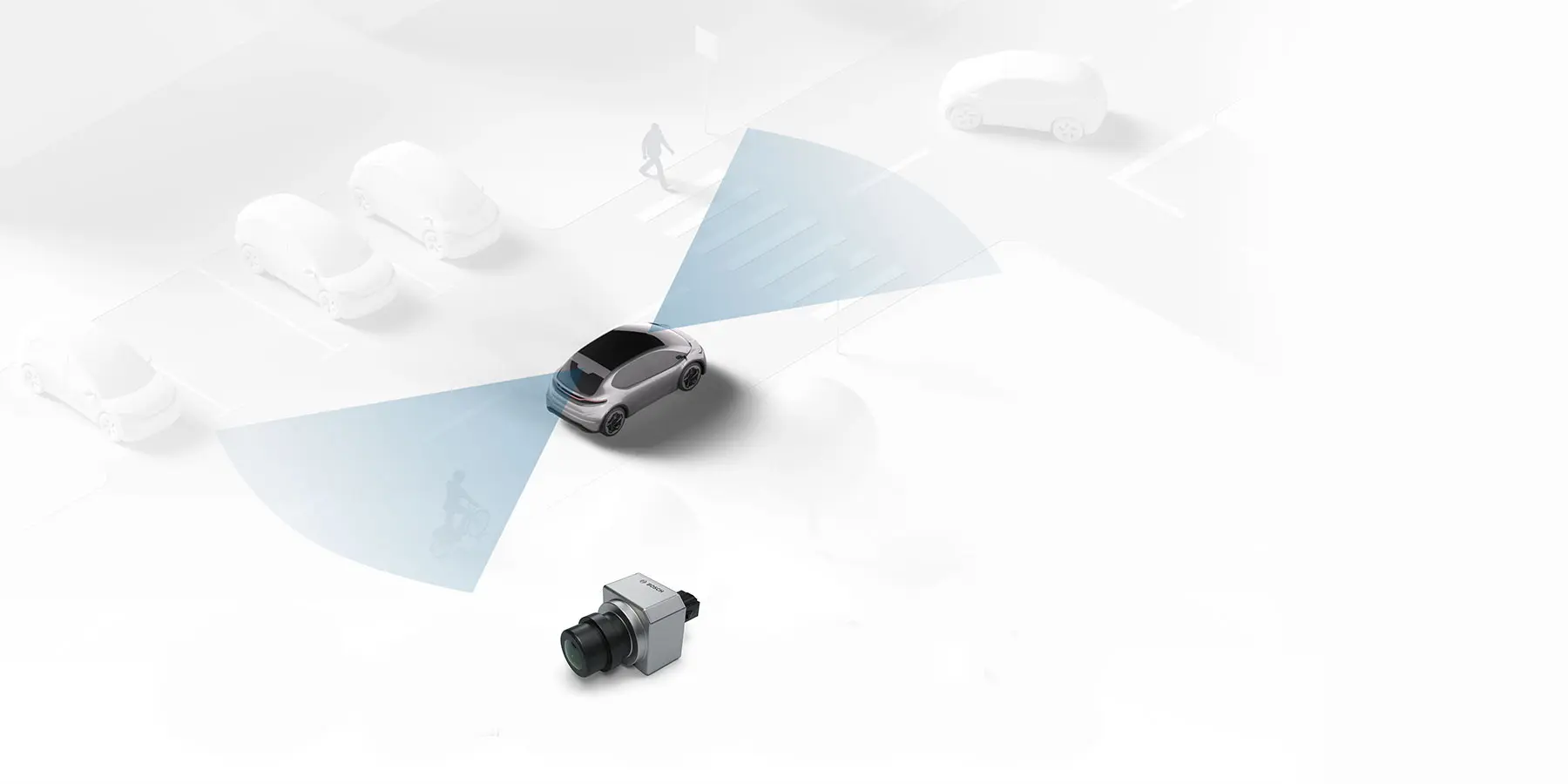

Front and rear cameras

The 8-megapixel front- and rear-facing camera has a narrow viewing angle and a broad opening angle.

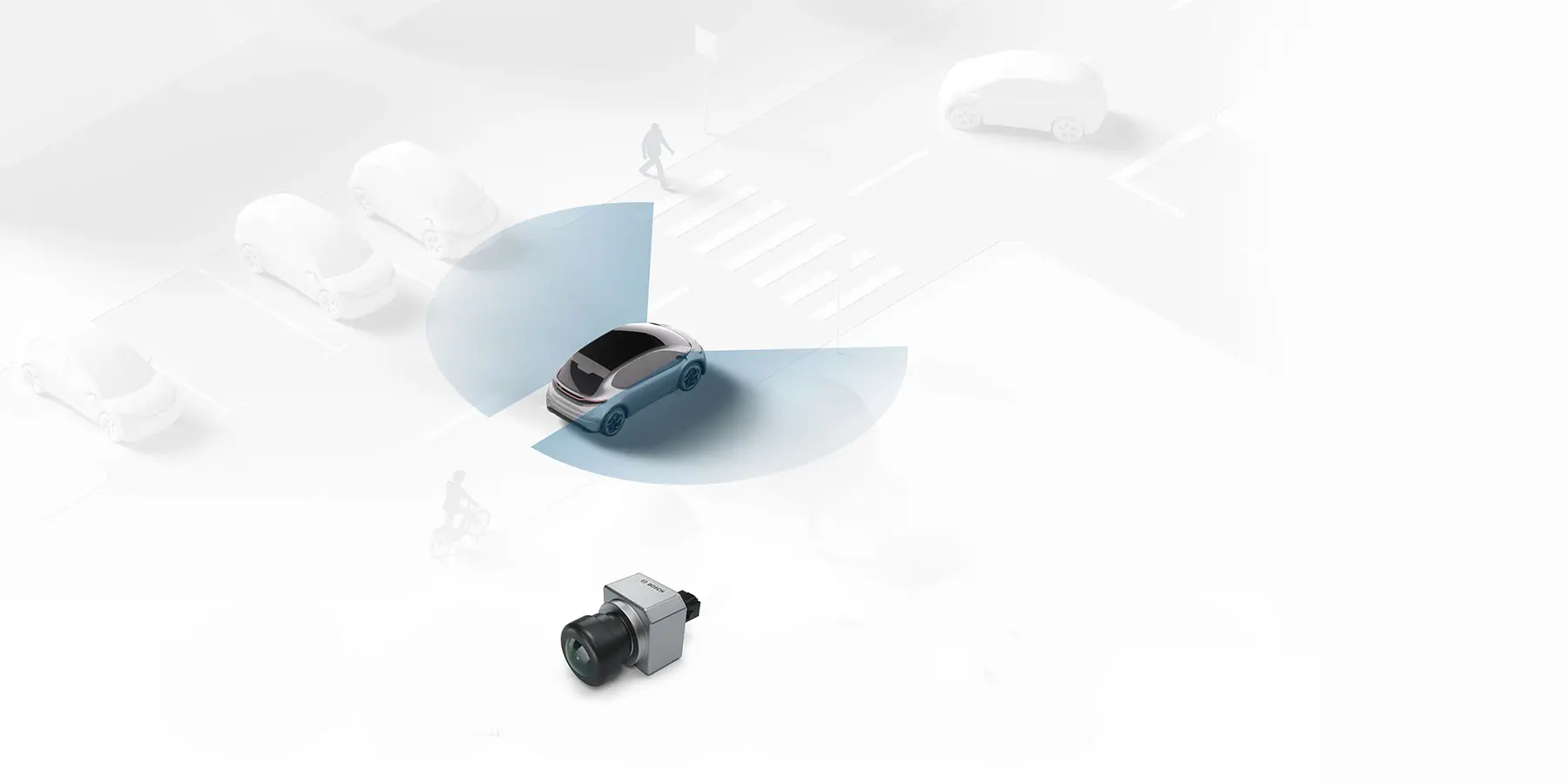

Camera wing back

The 8-megapixel camera covers the rear, side vehicle environment and is designed for 360° environment perception.

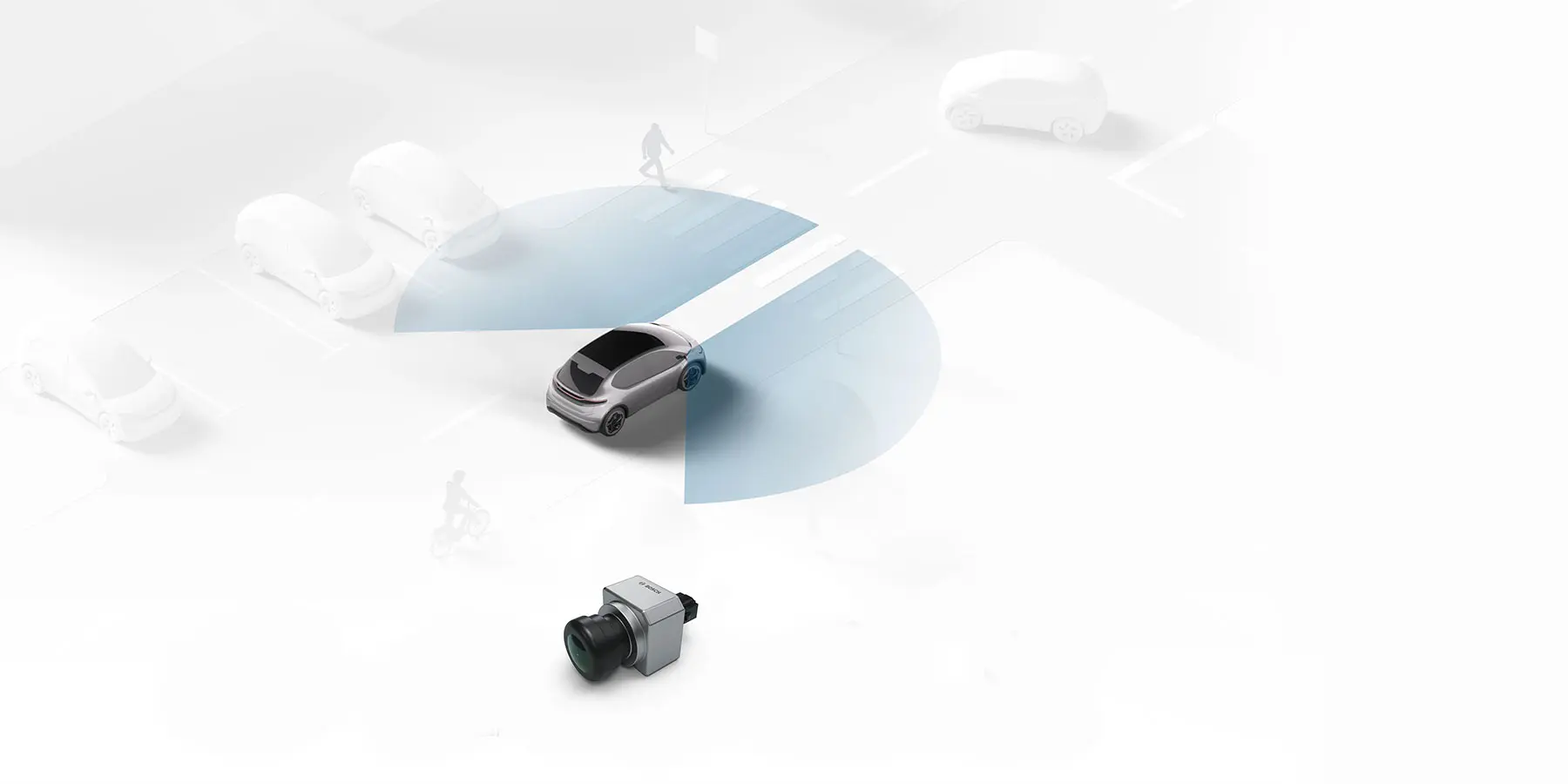

Camera wing front

The 8 megapixel camera covers the front, side vehicle environment front and is designed for 360° environment perception.

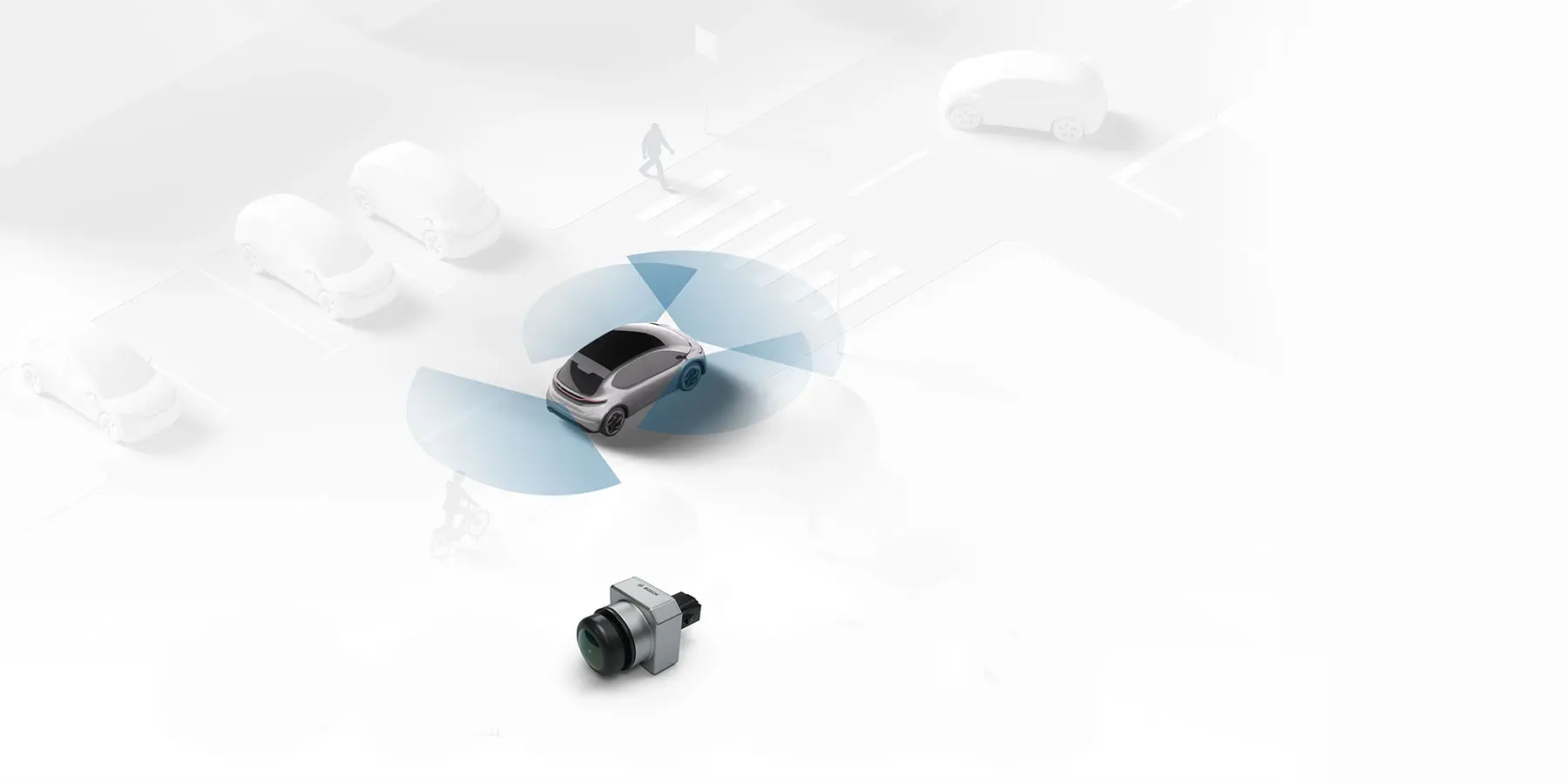

Near range camera

The 3-megapixel camera covers the near range and is primarily used for parking applications..

Tele camera

Front and rear cameras

Camera wing back

Camera wing front

Near range camera
