Flat Rock proving ground

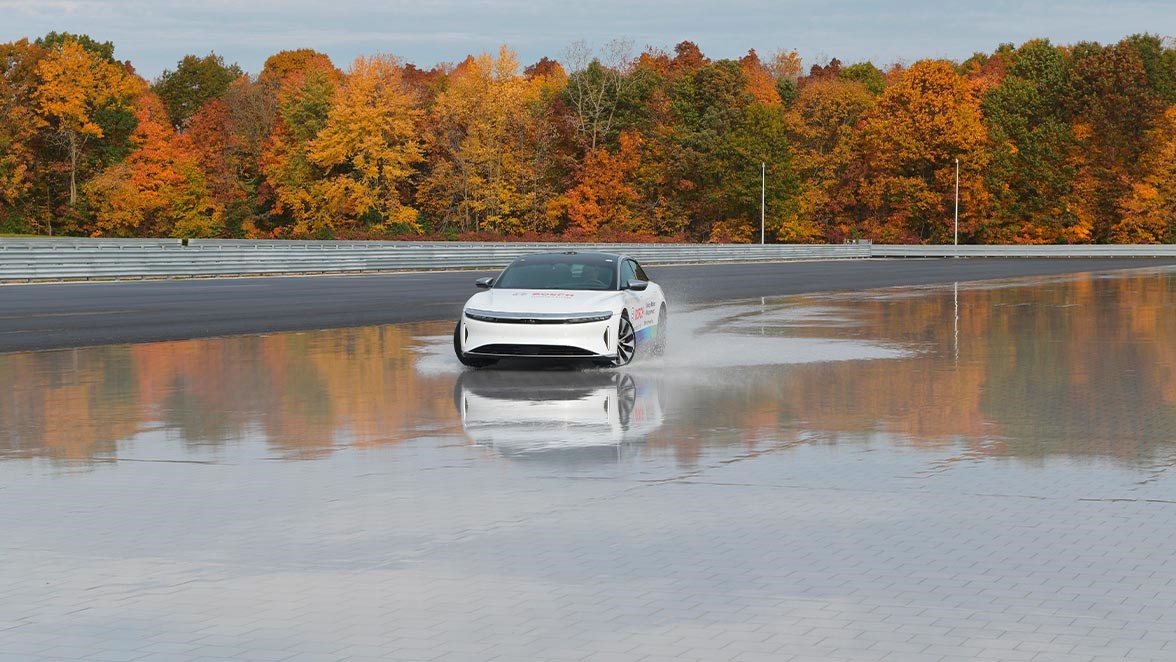

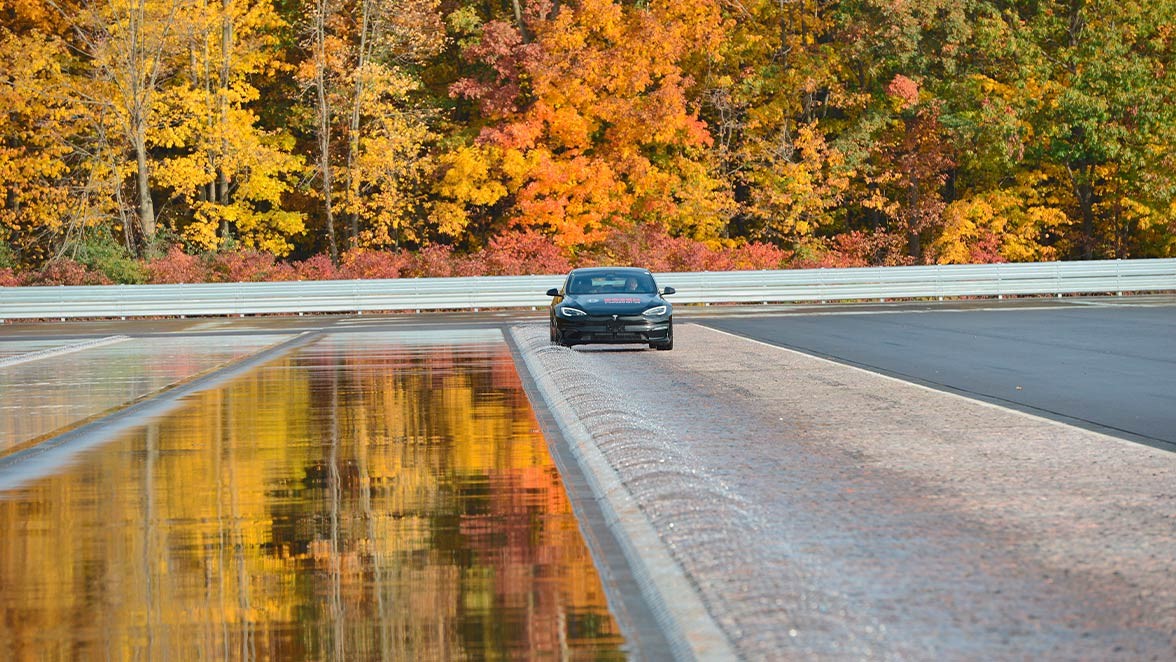

Brake tests can be carried out on the floodable brake-measurement tracks with various road surfaces and friction coefficients.

• Wet mid mu tile: 15 ft x 492 ft / 4.5 m x 150 m
• Wet grooved concrete: 15 ft x 492 ft / 4.5 m x 150 m
• Wet white tile: 15 ft x 492 ft / 4.5 m x 150 m
• Wet asphalt: 15 ft x 492 ft / 4.5 m x 150 m
• Dry cobblestone: 15 ft x 492 ft / 4.5 m x 150 m
• Asphalt safety zone: 65 ft x 492 ft / 20 m x 150 m
• Run-up road: 820 ft / 250 m
• Run-off road: 184 ft / 56 m

The multi-functional area has a size of 1,496 ft x 255 ft / 456 m x 78 m and can be used for many vehicle tests. This includes various friction coefficient surfaces and a traction control circle.

• Asphalt safety zone: 97 ft x 492 ft / 30 m x 150 m
• Wet basalt: 62 ft x 294 ft / 19 m x 150 m
• Tiles: 30 ft x 492 ft / 9 m x 150 m
• Run-up road: 820 ft / 250 m
• Run-off road: 184 ft / 56 m

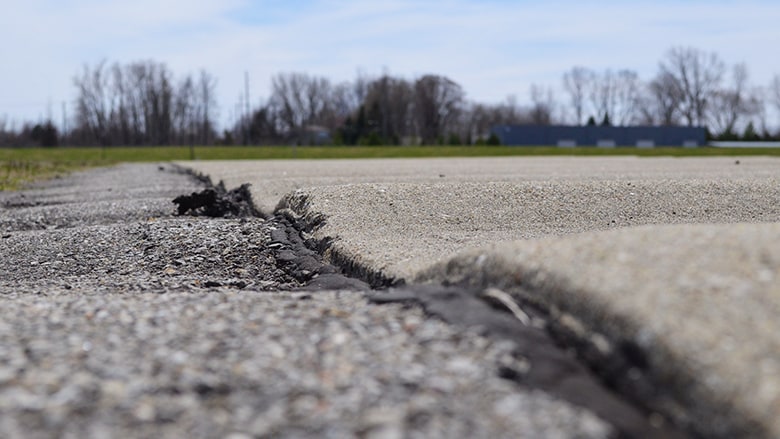

Rough road tracks put suspension and electronics through a hard test. The track provides different road surfaces and is suitable for speeds up to 50 km/h (31 mph).

• Potholes: 3 m / 10 ft x 21.3 m / 71 ft with 6 potholes 1 – 1 1/2” deep

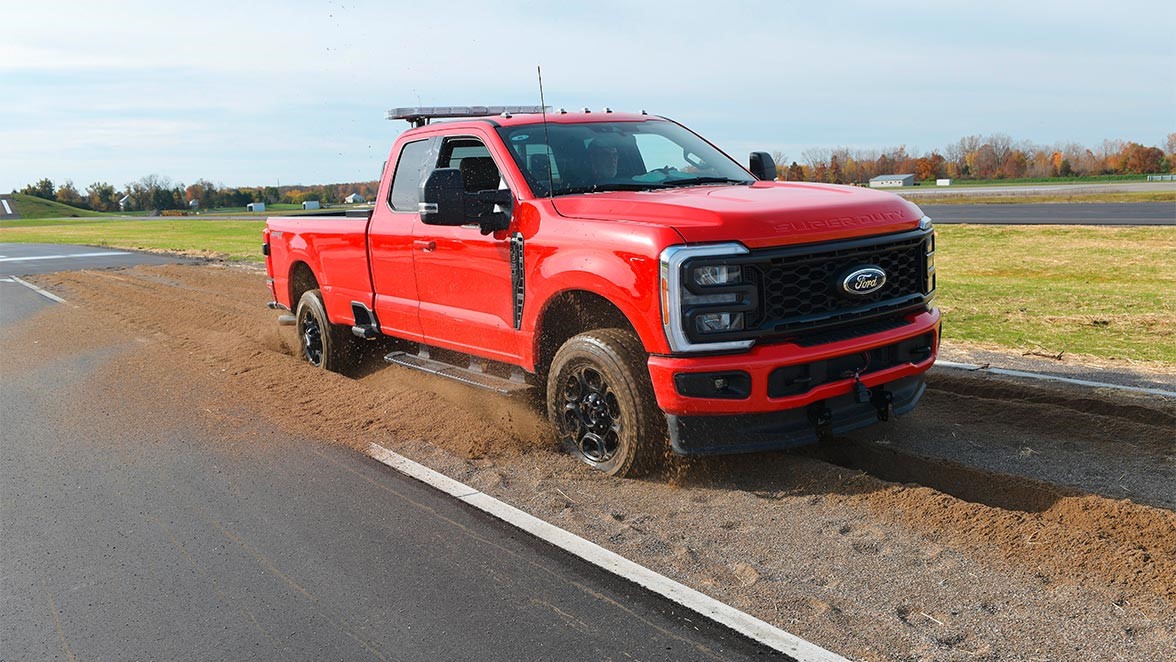

• Deep sand: 91 m / 300 ft x 6 m / 20 ft
• Gravel (MDOT, Michigan Department of Transportation): 141 m / 470 ft x 15 m / 50 ft
• Rumble strips: three 2.4 m / 8 ft x 2.7 m / 9 ft strips
• Sine waves: 30 m / 100 ft x 6 m / 20 ft

The off-road area has multiple surfaces for frame twists and vehicle dynamic evaluations.

• Lane one: log lane, avg. 12” diameter – 15 ft x 50 ft / 4.5 m x 15 m
• Lane two: grass lane – 15 ft x 50 ft / 4.5 m x 15 m
• Lane three: small rocks, 4” to 11” / 15 ft x 50 ft / 4.5 m x 15 m
• Lane four: medium rocks, 16” to 20” / 15 ft x 50 ft / 4.5 m x 15 m
• Lane five: large boulders, 36” to 46” / 15 ft x 50 ft / 4.5 m x 15 m
• Buried tires: four farm tractor tires, 65” in diameter, buried at various depths allowing a staggered effect, with the ability to scale from tire to tire

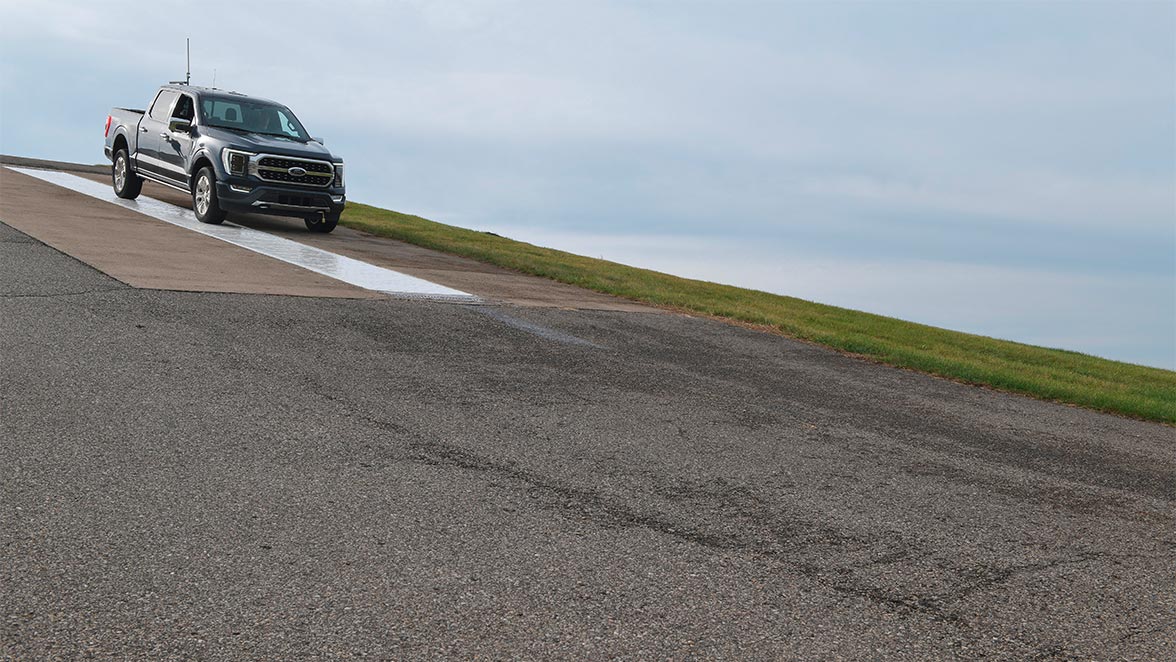

• Hill climb: 50 ft / 15 m
• Northwest side of the hill, the slope is 21 degrees
• Southwest side of the hill the slope measures 19 degrees with a 5-degree pitch
• Southeast side of the hill, the slope measures 11 degrees
• Northeast side of the hill contains a lane with dirt and large rocks and a slope measuring 23 degrees

Rough road tracks put suspension and electronics through a hard test. The track provides different road surfaces and is suitable for speeds up to 50 km/h (31 mph).

• Potholes: 10 ft x / 101 ft / 3 m x 31 m with 12 potholes 1 – 1 3/4” deep
• Deep sand: 15 ft x 350 ft / 4.5 m x 107 m
• Gravel (MDOT, Michigan Department of Transportation): 20 ft x 450 ft / 6.1 m x 137 m
• Rumble grate: 16 ft x 15 ft / 4.8 m x 4.5 m
• Sine waves: 13 ft x 197 ft / 4 m x 60 m
• Broomed concrete: 10 ft x 149 ft / 3 m x 45 m
• Bumps: 10 ft x 28.5 ft / 3 m x 9 m
• Truck bump: 10 ft x 24 ft / 3 m x 7 m
• Step road: 12 ft x 120 ft / 4 m x 37 m
• Milford road: 9 ft x 350 ft / 3 m x 107 m
• Washboard: 11 ft x 164 ft / 3 m x 50 m
