Transmission sensors

Small, durable and flexible in use

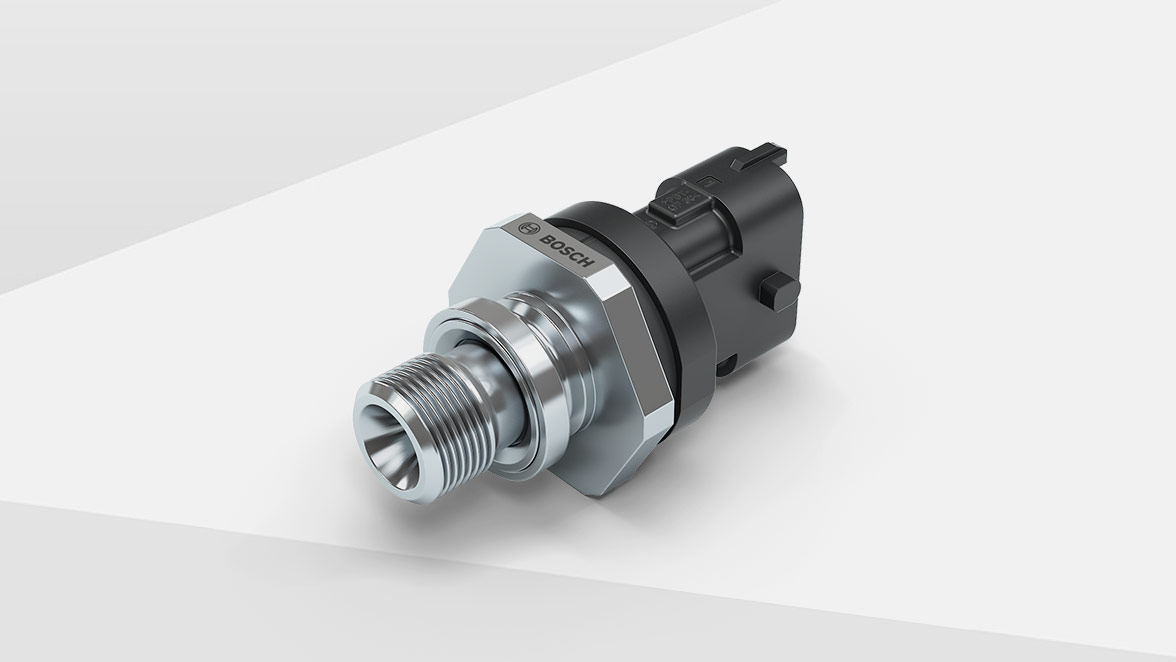

The transmission speed sensor is designed as a hall or inductive sensor. The transmission sensor performs contactless scanning of the steel or multipole trigger wheels. The sensing element of the transmission pressure sensor consists of a membrane that is deformed by the applied pressure.

The deformation is converted into a voltage proportional to the pressure. An electronic evaluation circuit then amplifies and digitizes the voltage.

Variants
Transmission speed sensors from Bosch are available as active or inductive variants. The active variant is characterized by high electromagnetic compatibility (EMC/ESD), small and flexible design, low weight and optional rotational-direction recognition.The inductive variant impresses with a high output signal at low speed and a position-independent mounting (TIM).

For transmission pressure sensors, different plug and hydraulic connections are possible. The transmission sensor may be mounted inside or outside the transmission.
